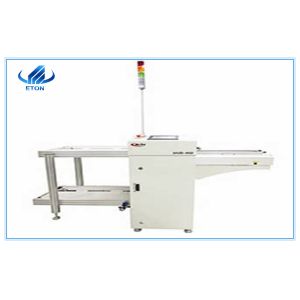

    LED Send Board SMT Mounting Machine HLX-330 220V 50HZ Pneumatic Clamp Structure

    Ask Lasest Price
    Brand Name : Eton
    Model Number : HLX-330 send board machine
    Certification : CE CCC ISO
    Payment Terms : T/T
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    LED Send Board SMT Mounting Machine HLX-330 220V 50HZ Pneumatic Clamp Structure

    HLX-330 send board machine


    Technical parameters


    ItemHLX-330 send board machine
    DimensionL1300*W860*H1200±30mm, in and out of the box
    FrameSpecial aluminum profile guide rail and special thousand bird type plastic chain
    Lift90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    Transmission motorTaiwan 15W fixed speed motor
    StructurePneumatic clamp structure
    Magazine SpecificationsL460*W400*565mm
    Maximum size of PCBL450*W330
    DirectionLeft to right
    Lift platform pitch selection10,20,30,40
    Transmission heightH=950±30
    ControllerMitsubishi PLC programmable controller
    FunctionAutomatically send board
    Operation control panelDisplay control true color touch screen
    Pneumatic ComponentsPush plate cylinder position, adjusted with screw
    power supply220V 50HZ
    No. of Full load storage board50 PCS
    Gas source0.4-0.6MPa
    Electric control box1 set

    Our services

    Before buying machine

    1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

    2) 24 hours online service and technical support, solve your questions quickly!

    3) Sound company organization and working system, guarantee you a fast delivery!

    4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!


    After buying machine

    1) 1 year free warranty

    2) Visit customers regularly and gather information.

    3) Provide latest information about technology and equipment.


    Ship and package

    1) shipping: Within 30 days after payment

    2) Packaging: Standard export package or customized package


    Quality LED Send Board SMT Mounting Machine HLX-330 220V 50HZ Pneumatic Clamp Structure for sale
