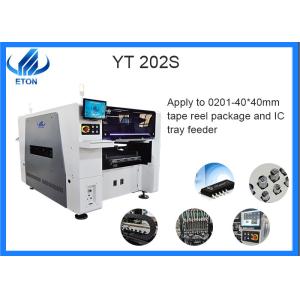

Panel light SMT picking and place machine with 80000cph and R&D software

model:YT202S

Heads:20PCS

Weight:1700kg

Mounting Speed:80000CPH

Power:380AC 50HZ

Feeder:32pcs

Core Components:Motor

Brand:ETON

Visual camera:4set of imported camera

Place of Origin:Guangdong, China

After-sales service system

the whole machine warranty for 1 year, for Life!

Regularly visit customers to understand the use of the situation, collect customer opinions!

Regularly provide customers with the latest production technology and equipment information!

SMT line process

Step 1:

Semiautomatic Stencil Printer Machine

In the SMT line for print the solder paste on the PCB.

Max PCB thickness:0.5-4.5 mm

Dimension: 2788*1686*1375 mm

Weight: 1700 kg

Very easy for operate and can be set multiple printing methods

Step 2: Automatic Pick And Place Machine

Pick and place machine is the most important machine in SMT Line, it directly influence the line capacity.

Yt202s is honor series pick and place machine, mounting Resistor, Capacitor, Bridge rectifier, etc.

Step 3 :Conveyor Machine
Transfer PCB boards between two machines, play a role in buffering and testing
One section of control , two sensors.
One set of electric control box

Step 4: Reflow Oven Machine

Heating system adopts high efficiency and energy saving nickel heat pipe, radiant power peak wavelength 4UM, with curved reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCBand components are heated more firmly

FAQ

Q:which kind of raw material should i prepared for SMT line?

A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.

Q:Can you support whole SMT line?

A:yes, we can provide whole SMT line solution if you want, we are professional in this field.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
