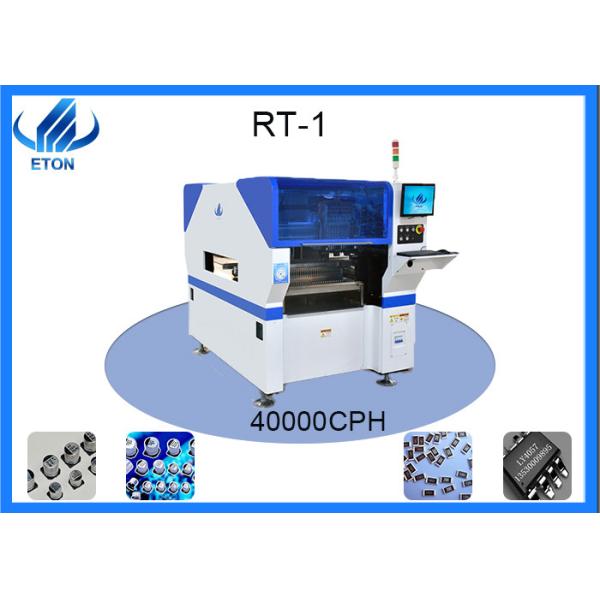

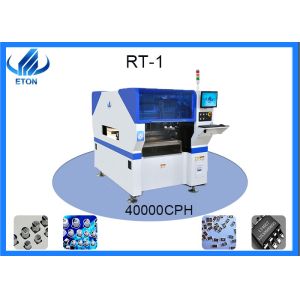

Multifunctional pick and place machine mounting for led lens chip making machine pick and place machine

Specification:

Dimension:1200*1930*1500mm

Total Weight:2000kg

PCB Length Width:Max:450*350mm Min:80*80mm

PCB Thickness:0.1-6mm

PCB Clamping:Pneumatic

Mounting Mode:Group picking and separate placingseparate picking and separate placing

No. of Camera:2 PCS

Mounting Precision:±0.04mm

Mounting Height:≦15mm

Mounting Speed:40000 CPH

Components:LED,capacitors,resistors,shapedcomponents, etc.

Power Consumption:4kw

No. of Feeders Station:32pcs

No. of nozzles:10pcs

Transmission Speed:＞1000mm/sec

Flood light identification

Flood light is designated by the illumination of the surface is higher than the surrounding environment lamps. Also known as the spotlight. Usually, it can be aimed in any direction and has a structure that is independent of climatic conditions. It is mainly used in large-area operation fields, building outlines, stadiums, overpasses, monuments, parks and flower beds, etc. . Therefore, all outdoor use of large-area lighting lamps can be regarded as projection lamp. The angle of the outgoing light beam of the projection lamp is wide and narrow, and the cross-over range is between 0 and 180.

What is an LED projector?

Led Spot Lights, also known as spotlights, projectors, spotlights and so on, mainly used for architectural decorative lighting, as well as commercial space lighting, decorative components heavier, its shape has a round and square, because generally have to consider the reasons for the heat, and therefore the shape of the traditional projector light or some differences.

Led projector features

1.On the market commonly used LED spot lamp is basically the choice of 1W high-power LED. Suitable for large-scale occasions cast light lighting, building lighting.

2.Symmetrical light distribution system with narrow angle, wide angle and asymmetry.

3.Replace the light bulb with open back, easy to maintain. 4.lamps are equipped with a scale plate to facilitate the adjustment of the irradiation angle.

The application of fan bin LED projection lamp mainly applies the hand single building, the lighting outside the historical building complex, the interior and exterior transparent lighting, the interior local lighting, the green landscape lighting, the advertisement board lighting, the medical culture and other special facilities lighting, bar, dance hall and other places of entertainment lighting atmosphere.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
