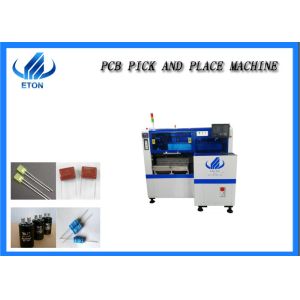

High Accuracy High-precision Stable High Speed pick and place machine/chip mounter

Details

Easy to maintain:English and Chinese interface, easy to learn, free training

Reasonable appearance design,Material is good:screw rod(IGUS), Y axis Transport conveyor(hiwin),X axis conveyor (Rexroth)

Head space:22 mm

It is can mounting capacitors,resistors,IC,shaped components,etc.apply to power driver.electric board.lens.linear bulb.household appliance etc.

The maximum size of PCB board is 500*350mm, the minimum size is 100*100mm, and the thickness of PCB board is 0.5~3mm. it adopted the technology of Group to picking and separate to placing ,Separate to picking and separate to placing.

Vision system: vision for the flight identification ,mark correction with 5 sets of imported camera.

A whole production line

Pick and place machine

Stencil printer

Reflow oven

Transfer machine

Conveyor

Patented technology

1. Electronic feeder feeding system: high stable,

2. Vision alignment flight identification,mark correction:high Accuracy

3. Non-stop material re-loading function:high speed

4. Auto-optimization after coordinates generated ,etc.

Application

components:

LED,capacitors,resistors,IC,shaped components,etc.

Application:

Power driver,electric board,lens,linear bulb,household appliance etc;street light,tube,bulbs,downlight.

After sales service

1.Maintenance period: 1 year.

2.Visit customers regularly and gather information.

3.Provide latent information about technology and equipment.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
