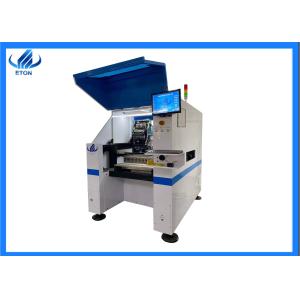

Pick and Place Machine RT-1 Multi-functional SMT Machine LED Mounting Machine

A new model pick and place machine of Eton company.

Designed for different types of PCB boards. Using newest high magnetic linear

motor, so the speed and accuracy is better than normalmulti-functional machines.

Can meet 0402 components, Max mounting height can be 36MM. It’s

suitable for various types of drives, power supplies, circuit boards, lenses, linear bulbs, home

appliance control panels, etc.

A module machine so you can put this kind of machine in series for

saving cost and increasing production(For the products with lots of materials).

RT-1 Main parameters

Questions

(1) If I use your pick and place machine, what kind of infrastructures I need to prepare?

Answer: Because pick and place machine is high accurate equipment, it has a high requirement

for the factory environment.

First, most suitable temperature is 22-32 degrees.

Second, to meet the basic need of production, air compressor should be 7.5P or more.

Third, try best to keep a non-dusty workshop.

Fourth, in some area the power supply not stable enough, so one UPS is needed.

(2) What are the basic safety operations?

Answer:

First, when everyday first start the machine, keep the speed on 20% 10 minutes for machine warmly.

Second, Don’t directly open the cover when machine is doing production! If you need to open it,

please press stop button first.

Third, if you want to shut down the machine, please shut down the computer first, then turn off the

rotary switch.

(3) How do I maintain this machine?

Answer: It's easy, at fixed period push few lube oil into the rail, and use non-dusty cloth wipe the raster ruler.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
