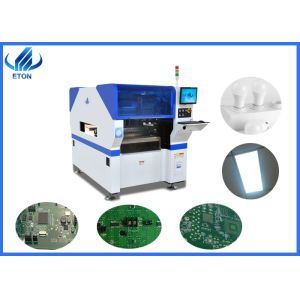

PCB pick and place with hot sales high speed LED bulb with 35000 CPH

    Buy cheap PCB pick and place with hot sales high speed LED bulb with 35000 CPH from wholesalers

    Buy cheap PCB pick and place with hot sales high speed LED bulb with 35000 CPH from wholesalers
    • Buy cheap PCB pick and place with hot sales high speed LED bulb with 35000 CPH from wholesalers

    PCB pick and place with hot sales high speed LED bulb with 35000 CPH

    Ask Lasest Price
    Brand Name : ETON
    Model Number : RT-1
    Certification : CCC\CE\SIRA
    Delivery Time :
    Supply Ability : 50 set per month
    • Product Details
    • Company Profile

    PCB pick and place with hot sales high speed LED bulb with 35000 CPH


    Introducing machine


    The Machines are mounted in different ways:Group picking and separate placing,separate picking and separate placing.So Suitable for mounting different product : high components and small board products.


    Product application

    • Components:LED,capacitor,resistor,shaped components.
    • Our machines can produce many different products:Bulb,street light,downlight,drive,etc


    Technical Parameter


    Technical parameter
    Dimension1200*1930*1500mm
    PCB size

    MAX:400*350MM

    MIN:50*50MM

    PCB clampingElectric clamping
    Mounting precision±0.04mm
    Mounting element height≤22mm
    Mounting speed30000-35000 CPH
    Feeding wayElectric feeder with double motor
    No.of feeders station32 PCS
    No.of nozzles10 PCS

    Mounting Height

    The mounting height of the multi-function machine can reach 22mm, so it is suitable for the mounting of shaped components


    The structure of multi-function machine

    StructureSingle arm
    camera2 cameras per module
    The head space18 mm ,can't be adjusted
    The feeders station space18 mm,can't be adjusted

    Operate system

    • System:Windoes 7
    • Software:R&D independently
    • Display:Touch screen monitor
    • Input Device:keyboard,mouse

    Exclusive patented technology

    • Electronic feeder feeding system
    • Vision alignment flight identification ,mark correction
    • Auto-optimization after coordinates generated,etc.

    Company information


    ETON is the largest high-tech manufacturer in China with stronge capability of design.And we have our own Industrial Park,which equipped with an advance processing and manufacturing center.



    Certification of Company


    We have obtained many certificates,the top brand company with CCC,CE,SIRA.



    Date of delivery

    Within 30 days after receiving the deposit.


    Warranty:

    Our standard warranty period is one year, during which parts can be replaced for an annual fee.


    Kind of package


    We use Vacuum packing and outer packing is wooden case packing



    Type of transportation

    Supporting Maritime transport,land transport and air transportation



    FAQ

    Q:Are you a manufacturer or trading company?

    A:Our company integrated with R&D,manufacturing,sales and service.


    Q:How is your service?

    A :We will send our engineer to your factory to install machine and training freely.


    Q:How can I withdraw the quality of your machine?

    A:We have certificates of CE,quality management certificate,and rated as "2015 LED Technology Innovation Aware'',''Double soft enterprise''.


    Q:It's hard to use the machine?

    A:Not at all.usually3 to 5 days is enough to learn to operate the machine.
