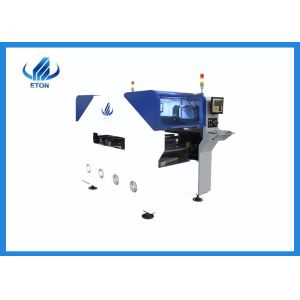

High quality Low cost 20 heads LED bulb/ IC SMT manufacturing machine SMT production line

♦ Product details

♦ Technical parameter

1. Features

(1).Magnetic linear motor multifunctional pick and place machine

(2).Zero-pressure mounting of LED, capacitors, resistors, ICs, special-shaped components, etc.

(3).Imported customized suction nozzle is adopted, which is not easy to lose parts during suction and placement, and the installation is convenient and durable.

(4). It is equipped with 20 placement heads and 64 feeder stations, which can suck 20 different materials at the same time, basically without replacing the nozzle.

(5).The whole machine adopts precision guide rail, which improves the precision of SMT placement.

2. Exclusive patented technology

(1).Electronic feeder feeding system. The feeding is accurate and not bad at all.

(2).Vision alignment flight identification, Mark correction

(3).Auto-optimization after coordinates generated, etc

3. Its technical advantages include

(1). Precise mechanical structure. Servo motor and imported transmission track are used to ensure the stability and control accuracy of mechanical movement.

(2). Precision intelligent placement head. Two groups of high-speed placement heads work at the same time, which greatly improves the cost-effectiveness of the equipment. High precision, high quality, high durability and long life.

(3). Controlled by industrial computer + independent dedicated controller, the system is stable, simple to operate and easy to learn.

(4). Simple and easy-to-use interface. Chinese and English operation interface.

(5). High-precision visual recognition system to identify various complex components. 4 sets of cameras, flight recognition camera + Mark camera, complete precise placement of components by scanning mark points.

(6).Double-motor electronic feeder, stable feeding, fast feeding speed, no need to repeat calibration. Through independent research and development, effective cost control is achieved, wide application range, high tolerance, precise stability and international synchronization, 1 year warranty, and extremely cost-effective.

Through independent research and development, effective cost control is achieved, wide application range, high tolerance, precise stability and international synchronization, 1 year warranty, and extremely cost-effective.

♦ Application

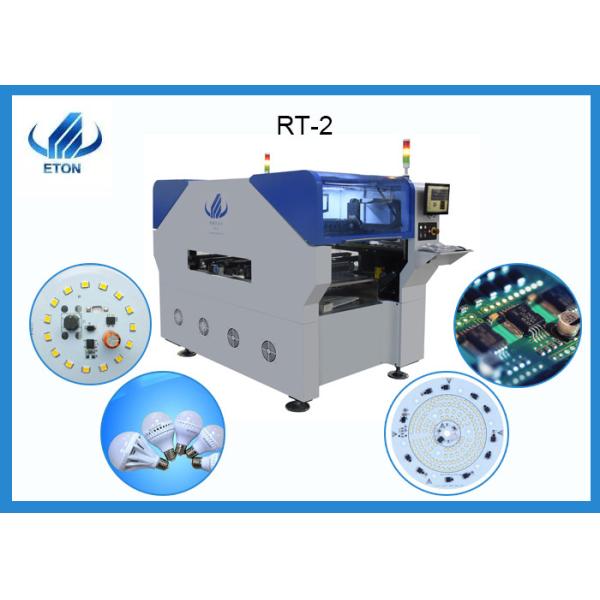

RT-2 is a multifunctional machine that can mount a variety of products, such as DOB, LED bulbs, LED panel lights, LED down-lights, LED spotlight, LED ceiling light, etc. Suitable for mounting various drive boards, power control boards, household appliances, etc.

♦ About our services

1. Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.

2. Service station: India office and Indian engineers can provide you with services faster.

3. After-sales service: Send engineers to your factory for free installation and training.

4. Shipment: Shipment within 30 days after payment.

5. Transportation methods: sea transportation, road transportation, air transportation, etc.

6. Software updates: Enjoy free software updates for life.

7. 24 hours online, available for consultation at any time

8.Visit customers regularly and gather information.

♦ About our company

Shenzhen ETON Automation Equipment Co., Ltd. has been committed to the R&D and manufacturing of placement machine equipment, always with the concept of "serving customers", keeping up with the market trend, and launching LED light board placement machines, LED flexible light strip placement machines, A series of products such as non-wire flexible light strip placement machine, LED display placement machine, copper wire lamp placement machine, lens placement machine and module placement machine, maximize customer needs.

In 2020, Eaton Jiangxi Industrial Park was successfully completed, equipped with advanced processing and manufacturing centers, strict quality control, standardized production processes, and simplified production processes. ETON’s advanced technology and innovation quickly promoted the revolution in the market and obtained a number of intellectual property rights. In addition, ETON invented the fastest automatic placement machine with a speed of 250,000 CPH. It saves a lot of labor and production space. More than 20 counties including the United States, South Korea, India, Germany, Egypt, Turkey, Vietnam, Tunisia, and Thailand have gained a large market

share.

♦ FAQ

Q1: Why choose your company?

A: We are a high-tech enterprise with the concept of building a national brand, providing "professional, efficient, and low-consumption" products, focusing on R&D, production, and sales of LED automatic high-speed energy-saving placement machines. Our aim is to provide customers with the best machines and services, please rest assured to choose us.

Q2:How is the breakdown rate of machine?

A: Our machine is very stable, the breakdown rate is less than 0.001.

Q3:Is your software interface in English?

A:English interface and Chinese interface are both available.

Q4: What’s the terms of payment? What about the trade term?

A: T/T is OK. You can choose FOB Shenzhen.

If you have other questions you want to know, you can contact me through the contact information below.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
