5KW 170000CPH LED Placement Machine For Flexible LED Strips

    Buy cheap 5KW 170000CPH LED Placement Machine For Flexible LED Strips from wholesalers

    Buy cheap 5KW 170000CPH LED Placement Machine For Flexible LED Strips from wholesalers
    • Buy cheap 5KW 170000CPH LED Placement Machine For Flexible LED Strips from wholesalers

    5KW 170000CPH LED Placement Machine For Flexible LED Strips

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F7
    Certification : CCC\CE\SIRA
    Supply Ability : 50 pcs per month
    • Product Details
    • Company Profile

    5KW 170000CPH LED Placement Machine For Flexible LED Strips

    Best quality LED placement machine High-speed with flexible light strips

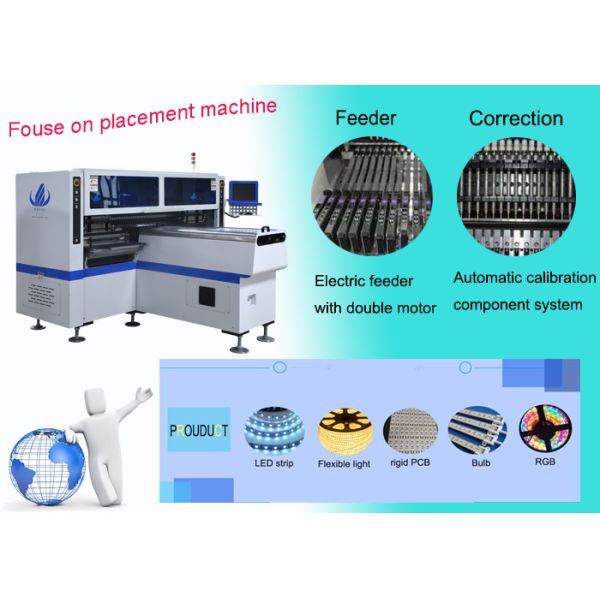

    Feature description

    ✹Suitable for mounting on 0.6, 0.9, 1.2 meters of hard light strips and 0.5, 1 meter of soft light strips, 2-4 kinds of materials can be mounted at the same time, and the mounting speed is not affected by the ratio of lamp beads, resistors and other materials;

    ✹The placement head is divided into left and right groups, each with 17 nozzles; with its own correction component system, it can mount RGB lamp beads, and the production capacity can reach 150,000 CPH.


    Machine Parameter


    Dimension2700*2450*1530mm
    Total weight1400kg
    PCBsize

    Max:1200*330mm

    Min:50*50mm

    Thickness0.1-5mm
    ClampingAdjustable pressure pneumatic
    Mounting modeGroup picking and separate placing,separate picking and separate placing.
    O.S.SystemWindows 7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input deviceKeyboard,mouse
    Vision systemcamera5 PCS digital camera
    Mounting precision0.02mm
    Mounting element height≤5mm
    Mounting speed150000-170000 CPH
    ComponentsLED3014/3020/3528/5050 and capacitor,resistors,bridge rectifiers,etc.
    Components space0.2mm
    Feeder station68 PCS
    Nozzles34 PCS
    Power220AC 50HZ
    Power consumption5KW
    Operating environment23℃±3℃
    Transmission speedMax length:1200mm
    Transmission modesingle
    Position modeOnline drive
    Gas consumption0.5mpa
    Electric controlIndependent research and development by ETON
    Motion control card module 1 setIndependent research and development by ETON
    XYZ axis drive wayHigh-end magnetic linear motor and servo motor
    Feeding wayElectric feeder with double motor

    Brand introduction

    Shenzhen Yitong Automation Equipment Co., Ltd. has always been committed to the development and production of LED high-speed placement machines, LED display placement machines, multi-function placement machines, and automatic placement machines.

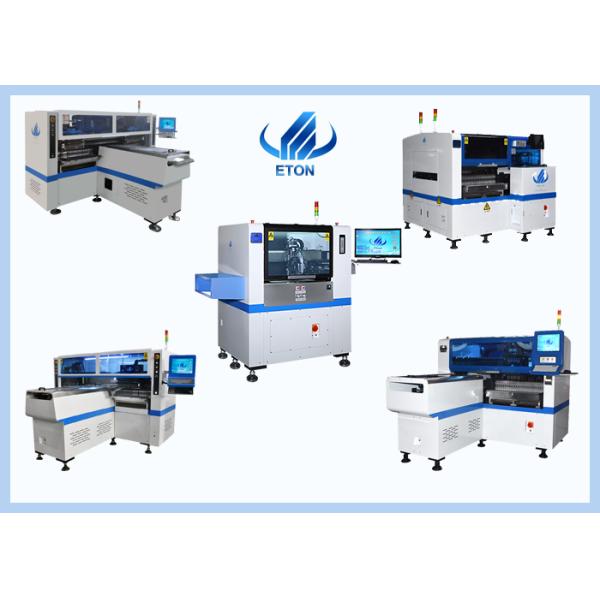

    There are many types of our machines


    Machine Details

    Mainly for half-meter and 1-meter flexible light strips, tubes, panel lights can also be mounted.

    Automatic or manualAutomaticmodelSingle module
    Feeder station68 PCSPrecision0.02mm
    Speed150000 CPHFeature of cameraVision alignment,MARK correction


    Company Profile

    ETON is a leading manufacturer of automatic highspeed pick and place machine,which has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents, and 12 software copyrights.,and rate as “Shenzhen high-tech enterprise”,”China high-tech enterprise”,Shenzhen TOP brand”,”2015 LED Technology Innovation Award”,”The 4th China LED first Innovation aware”,”Industry Special Contribution Award”.


    About our services

    ♔Professional solutions:provide professional SMT full line solution

    ♔Warranty:1 year warranty factory service

    ♔Free Installation:one-site free installation to ensure smooth production

    ♔Free technical training:professional training of operating and maintenance

    ♔Technical support:24 house online support

    ♔Software Upgrade:offer free software upgrade whole lifetime.


    Package and delivery

    ❆Standard export vacuum waterproof package

    ❆Strong wooden package for ensure safely delivery of heavy and large equipment

    ❆Delivery:By air,sea and railway.

    Description of SMT

    • SMT is currently the most popular technology and process in the electronic assembly industry. It is a method of mounting leadless or segment-lead surface assembly components on the surface of a PCB or other substrates through reflow soldering. Or dip soldering and other methods to solder and assemble the circuit assembly technology.
    • Application of SMT: PCBA production of various lighting fixtures, portable and popular notebook computers, mobile phones, and dots all benefit from this.
