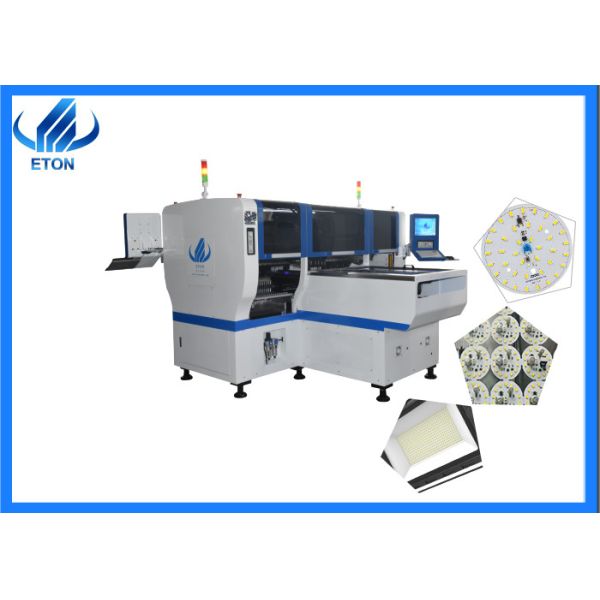

    Recognizable DOB 0402 Lamp Beads SMT Mounting Machine 90000CPH

    Fully automatic recognizable DOB 0402 lamp beads mounting machine


    Product description


    The dual-system dual-module multi-function placement machine can produce two different products at the same time.

    Mounting parts: with mounting lamp beads, lenses, capacitors, resistors, ICs and various special shaped components.

    Products: driver, 1.2m flexible light strip, lens, bulb, panel light, small accessories, etc.



    Features


    Control system: ball screw, servo motor and magnetic levitation motor.
    24 placement heads with dual modules can pick up and calibrate components at one time.
    Video tutorials make it easier to operate the machine.
    Provide lifetime free software upgrade service.
    Visit regularly and collect customer opinions.
    Exclusive patented technology: electronic feeder feeding system, non-stop refueling.

    Technical parameter


    HT-E8D-1200 pick and place machine
    DimensionLength* Width* Height3150mm*2250mm*1650mm
    Total weight2500kg
    PCBPCB SizeMax:1200*300mm Min:100*100mm
    PCB Thickness0.5-5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting modeGroup picking and separate placing, separate picking and separate placing
    Vision SystemNo. of camera4 sets
    Vision for the flight identification, mark correction
    Mounting precision+0.04mm
    Mounting speed90000CPH
    ComponentsLED, capacitors, resistors, IC, shaped components, etc.
    No. of feeders station48PCS double module
    No. of nozzles24PCS double module
    XYZ Axis drive wayHigh-end magnetic linear motor + servo motor
    Feeding wayElectric feeder with double motor

    Company information




    Certificate



    Delivery



    Packing


    vacuum wooden box packing.


    Partner



    Services



    FAQ


    1.Do you have any customers in India? How many machines are there in India?

    Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.

    2.Can I visit the production site of your machines in India?

    I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.

    3.Does the price include the spare parts(feeder and nozzle)?

    Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.

    4.What is your machines quality?

    We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
