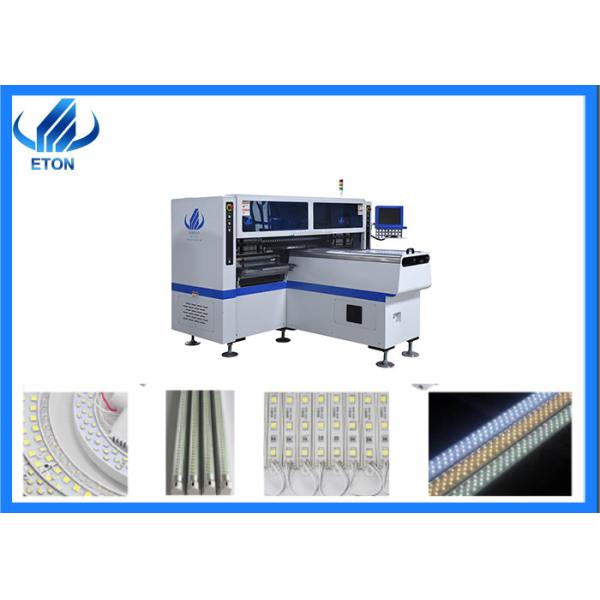

5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light

    Buy cheap 5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light from wholesalers

    Buy cheap 5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light from wholesalers
    • Buy cheap 5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light from wholesalers

    5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F7S
    Certification : CCC, CE, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    5 KW LED Monitor SMT Mounting Machine 4 Heads Hard Board Light

    High-speed excellent performance hard board light soft light with 34 heads pick and place machine


    Product description


    Dual purpose professional high speed mounting machine, 2~4 type of capacity reach 150000-170000CPH

    Vision alignment, Mark correction.


    Technical parameter


    HT-F7S pick and place machine
    DimensionLength* Width* Height2700mm*2450mm *1530mm
    Total weight1400kg
    PCBPCB SizeMax:1200*330mm Min:50*50mm
    PCB Thickness0.5-5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting modeGroup to take and group to mount
    O.S.SystemWindows 7
    SoftwareR&D independently
    DisplayLED monitor
    Vision SystemNo. of camera5PCS(Digital camera)
    Vision alignment, Mark correction
    Mounting precision+0.02mm( repeat precision)
    Mounting speed150000-170000CPH
    ComponentsLED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
    No. of feeders station68PCS
    No. of nozzles34PCS
    XYZ Axis drive wayHigh-end magnetic linear motor + servo motor
    Feeding wayElectric feeder with double motor


    Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc

    Application: flexible strip, LED tube, panel light, display screen, etc




    Company information


    Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise, double soft enterprise.



    Certificate



    Exhibition


    In order to understand the development of the industry and increase the customer area, our company participates in a large number of domestic and foreign exhibitions every year.



    Delivery




    Services


    Free professional advice: For the production of SMT machine.

    Free technical support: 7*24 hours online technical service.

    Free installation and training: We have established offices overseas and can arrange engineers to go directly to the factory for free installation and training.

    Free upgrade software: The machine software is developed by our company, so we provide life-long free upgrade software for customers who purchase the machine


    FAQ


    1. What is the direction of transmission of machines?

    The transmission direction of this machine is both direction

    1. Is electrical control developed independently?

    Yes, the electrical control is by ourselves and have exclusive patent technology.

    1. Are you a manufacturer or trading company?

    manufacturer. We have our own industrial park.
