Automatic SMT PCB Vertical Type Loader Working with SMT PCB Unloader for PCB SMD Production Line SMT line

What is unloader ?

The Unloader is a device used to collect the PCB boards on the production line. The existing unloader is only done manually. Although there are also automatic automatic unloader, the existing automatic unloader has a complicated mechanism and is not easy. The operation requires a large area, and some unloading machines need to continuously replace the load-bearing plates during use, which causes a waste of manpower. Therefore, there is an urgent need for an automatic unloading machine with simple structure, simple operation and small area.

Features:

1. It is used for reflow soldering, placement machine, laser machine, and inkjet printer to realize automatic board receiving;

2. It adopts PLC+human-machine touch screen control, all parameters can be digitally input, and the setting is extremely convenient;

3. The motor push plate can set the thrust according to the thickness of the PCB to prevent the material basket from deforming and jamming the PCB;

4. The lifting adopts imported ball screw, which has the characteristics of high speed, low noise, high precision, and durability;

5. This machine is composed of three parts: lift + basket standby rail + board push board rail;

6. The lifting work area can be realized for a long time without manual attention, and achieve the purpose of long-term automation as the front machine rewinding;

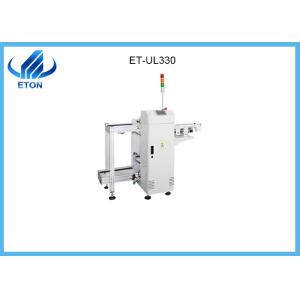

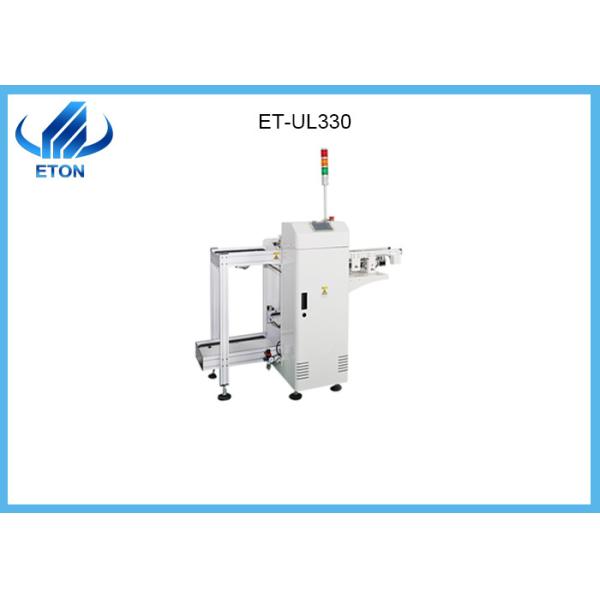

Automatic Unloader.

Specifications:

Company advantage:
1. The top brand of domestic placement machine
2. Owning an industrial park of 50,000 square meters, a total of 7 buildings, including production workshops, inspection workshops, assembly workshops and so on.
3. More than 300 employees, including R&D personnel from home and abroad.
4. The highest speed of the high-speed placement machine reaches 250,000CPH, the fastest speed in the world.
5. There are service points in India, and local engineers in India, Egypt and Turkey install and train machines for free.

After service:

1. Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.

2. Service station: India office and Indian engineers can provide you with services faster.

3. After-sales service: Send engineers to your factory for free installation and training.

4. Shipment: Shipment within 30 days after payment.

5. Transportation methods: sea transportation, road transportation, air transportation, etc.

6. Software updates: Enjoy free software updates for life.

7. 24 hours online, available for consultation at any time

8. Visit customers regularly and gather information.

FAQ:

Q1: When is the delivery time?

A: Within 30 days after payment.

Q2: What kind of packaging is used?

A: 1. Standard export vacuum waterproof package

2. Strong wooden package for ensure safely delivery of heavy and large equipment

Q3: How is the breakdown rate of machine?

A: Our machine is very stable, the breakdown rate is less than 0.001.

Q4: Is your software interface in English?

A: English interface and Chinese interface are both available.

Q5: What’s the terms of payment? What about the trade term?

A: T/T is OK. You can choose FOB Shenzhen.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
