    High Speed 68 Heads SMT Pick And Place Machine For Roll To Roll Flexible Strip

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-T9
    Certification : CE,CCC,SIRA,ISO
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    High Speed 68 Heads SMT Pick And Place Machine For Roll To Roll Flexible Strip

    Roll to roll flexible strip High speed 68 heads SMT pick and place machine


    Features

    • Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
    • Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
    • Calibration automatically, high precision, available for RGB.
    • Exclusive patent technology: Group to pick and group to mount.

    IPC9850 Capacity: 200000~250000 CPH

    Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0


    Technical parameter

    ModelHT-T9
    Dimension
    Length3100mm
    Width2300mm
    Height1550mm
    Total Weight1700kg
    PCB
    PCB Length Width250mm*any length
    PCB Thickness0.5-1.5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting ModeGroup to take and group to mount
    O.S.
    SystemWindows7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input DeviceKeyboard, Mouse
    Vision System
    No. of Camera5 PCS ( Digital camera)
    Vision alignment, MARK correction
    Mounting Precision±0.02mm
    Mounting Height≦5mm
    Mounting Speed200000~250000 CPH
    ComponentsLED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
    Components Speed0.5mm
    No. of Feeders Station68 PCS
    No. of nozzles68 PCS
    Power380AC 50 HZ
    Power Consumption6kw
    Operating Environment23℃±3℃
    Conveyor transmissionMax Length :1000 mm
    Transmission speed>500mm/sec

    Packages

    Step 1: Packing in film package to prevent dust and water to the machine

    Step 2: Packing in foam cotton to protect the outside of the machine

    Step 3: Packing in vacuum package to keep dry of the machine during transportation

    Step 4: Transportation by truck to specified port

    Related machine

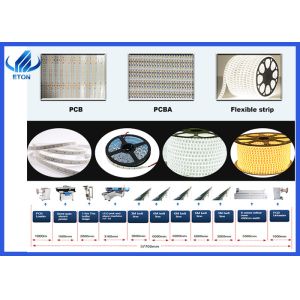

    We can provide a whole SMT production line,led light production line:

    1.Pick and place machine

    2. Loader machine

    3. Conveyor machine

    4. Stencil printer machine

    5. Reflow oven machine

    6. Unloader machine

    7. Solder paste mixer

    8. Roll to roll led strip light assembly machine

    Certificates

    As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

    etc.
