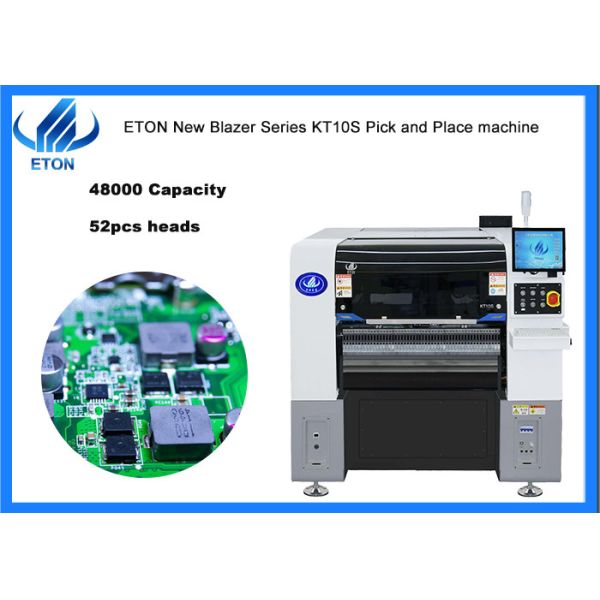

    Middle Speed Min 0402 Component 10 Nozzle SMT Mounting Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : KT10S
    Certification : CE,CCC,SIRA,ISO
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Middle Speed Min 0402 Component 10 Nozzle SMT Mounting Machine

    Middle speed Min 0402 component 10 nozzle smt mounting machine


    Machine main features

    • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
    • Y axis double drive gantry, higher speed more stability
    • The placement head adopt independent vacuum detection, improve the placement performance
    • Off-line programming, save time of changeover cycle
    • Equipped coordinate import function, more intelligent

    Machine main parameter

    ModelKT10S
    Dimension1460*2015*1654mm
    Total weight2080kg
    PCB sizeMax:500*450mm(Length can be customized) Min:50*50mm
    PCB thickness0.5-5mm
    Mounting precisionCHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
    Mounting speed48000 CPH(Optimal speed)
    ComponentsLED, capacitor, resistors, shaped components,etc
    Power consumption220AC 50HZ 1.5KW
    Feeder station52 PCS(option 104 PCS), IC tray option
    No. of head10 PCS

    Machine application

    Certificates

    As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

    etc.

    Service

    • Professional solutions: Provide professional SMT Full line solutions
    • Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
    • Free Installation: On-site free installation to ensure smooth production.
    • Free Technical Training: Professional training of operating and maintenance.
    • Free Technical Support: 7 * 24 technical online support.
    • Free Software Upgrade: Offer free software upgrade whole lifetime

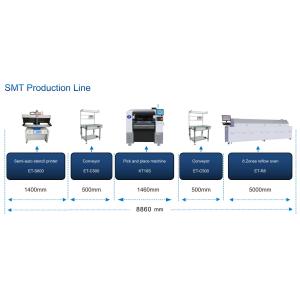

    SMT line

    A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

    The blowing is the function of each machine:

    • Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
    • Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board;
    • Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
    • Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

    FAQ

    Q. What is your actual speed of your products?

    A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.


    Q. How many components can your pick and place machine mount in a PCB board?

    A. While this is for our clients needs and the size of the PCB board.
