Product description

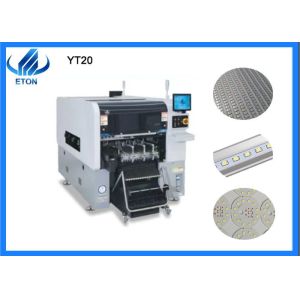

Pick and place machineYT20 is one of the newly launched YT series products from ETON. The dual-module pick and place machine can produce two identical PCB boards at the same time, improving production efficiency. Under optimal conditions, the production capacity can reach 80000CPH, and the precision is very high, and the minimum mounted components can reach 0201.

Machine highlight

High speed multi modular head:adopt high -speed multi modular head,apply to ultra small chip 0201-40*40mm large chip,wider component range.

Brand new flight vision camera:improve recognition performance,size up to 40mm*40mm,apply to BGA or CSP etc.

Vacuum sensing device:each pick and place machine head with independent detection function,which improves the stability of the equipment and the reliability of the product.

Ultra high speed capability:adopt high end magnetic linear motor,servo system and multi function modular head,the capability increased by 25% compared with traditional pick and place machine,optimum placement speed reach 80000CPH.

Parameter

Application

Pick and place machineYT20 can be applied to components as small as 0201 and as large as 40 * 40mm, and can also install large IC components such as BGA, CSP, and QFP. The finished product is not only LED lamps, but also more complex PCBA boards, such as driver boards, circuit boards, etc

Service
Engineers available to service machinery overseas.
We will have a good check and a test before shipping out.
24 hours technical support by e-mail or whatsapp.
Regular visit(one year warranty period, spare parts repair free; once or twice a year after warranty)
7*24 technical online support
Professional training of operating and maintenance
Provide free installation machine to ensure smooth production
Quality first, client-oriented, continuous improvement
We promise to allow customers to clearly know the completion of the product

FAQ

What are the terms of payment?

A: FOB Shenzhen is OK.

How to pay after buying the product?

A:For payment, we only support T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.

How long is the product warranty period?

A:Effective within one year after installation.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
