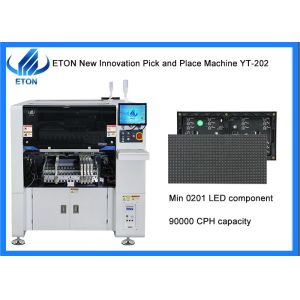

90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly

    Buy cheap 90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly from wholesalers

    Buy cheap 90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly from wholesalers
    • Buy cheap 90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly from wholesalers
    • Buy cheap 90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly from wholesalers

    90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly

    Ask Lasest Price
    Brand Name : ETON
    Model Number : YT-202
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    90000 CPH SMT Pick Place Machine For Min 0201 Power Driver LED PCBA Assembly

    Min 0201 power driver LED PCBA assembly machine

    Machine main features

    • Adopt High speed multi modular head, apply to ultra small chip 0201~10 mm large chip, wider component range;
    • Brand new flight vision camera: Improve recognition performance, size up to 10 mm*10 mm;
    • Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
    • Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 90000 CPH;
    • Brand new self-developed high precision placement head;
    • Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
    • The placement head adopt independent vacuum detection, improve placement performance;
    • Off-line programming, save time of changeover cycle;
    • Software AI intelligent learning function and automatic optimization function.
    • Two gantry, 10 spindles*2 Gantry, total 20 spindles;
    • Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.

    Machine main parameter

    ModelYT-202
    PCB size

    Max size: 500*450 mm(Single side)

    500*300(Double side)

    Min size: 50*50 mm

    PCB thickness0.5-4.5 mm
    PCB clampingCylinder clamping, track width adjustable
    SoftwareR&D independently
    Production management MES systemCustomized (Option)
    Off-line programmingAvailable
    Camera

    Head flight vision recognition component

    Vision alignment + Mark correction

    Repeat precision±0.02 mm
    Mounting height≦15 mm
    Position modeOptical
    Optimal speed90000 CPH
    Component rangeMin 0201~10 mm packages and IC etc.
    Position modeOptical
    No.of heads

    Double side:20 PCS

    Single side:10 PCS

    Feeding wayIntelligent double head feeder
    X,Y,Z Axis drive wayHigh end magnetic linear motor + Servo motor

    Machine application


    Market

    Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

    SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.


    Shipping and Delivery

    Shipping Way:

    ※ By air, for sample and small package

    ※ By sea, for large package and quantity;

    ※ Other ways as customer requested.

    Delivery Time:

    ※ Within 30 Days.


    Our advantage

    We can provide SMT line solution for you!


    Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc

    1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.

    2.Provide Overseas engineers for Free installation and free training.

    3.TOP brand of China SMT machine manufacturer,500 employees for ETON


    Related machine

    ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.


    FAQ

    Q. How was your services?

    A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.


    Q. Can you accept D/P or D/A as the payment term?

    A. For our regular payment terms, we usually use T/T.


    Q. How can I contact you to buy the goods in an efficient way?

    A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.


    Contact me:

    Whatsapp/Wechat: +8613632769526

    Email: Noah@eton-mounter.com
